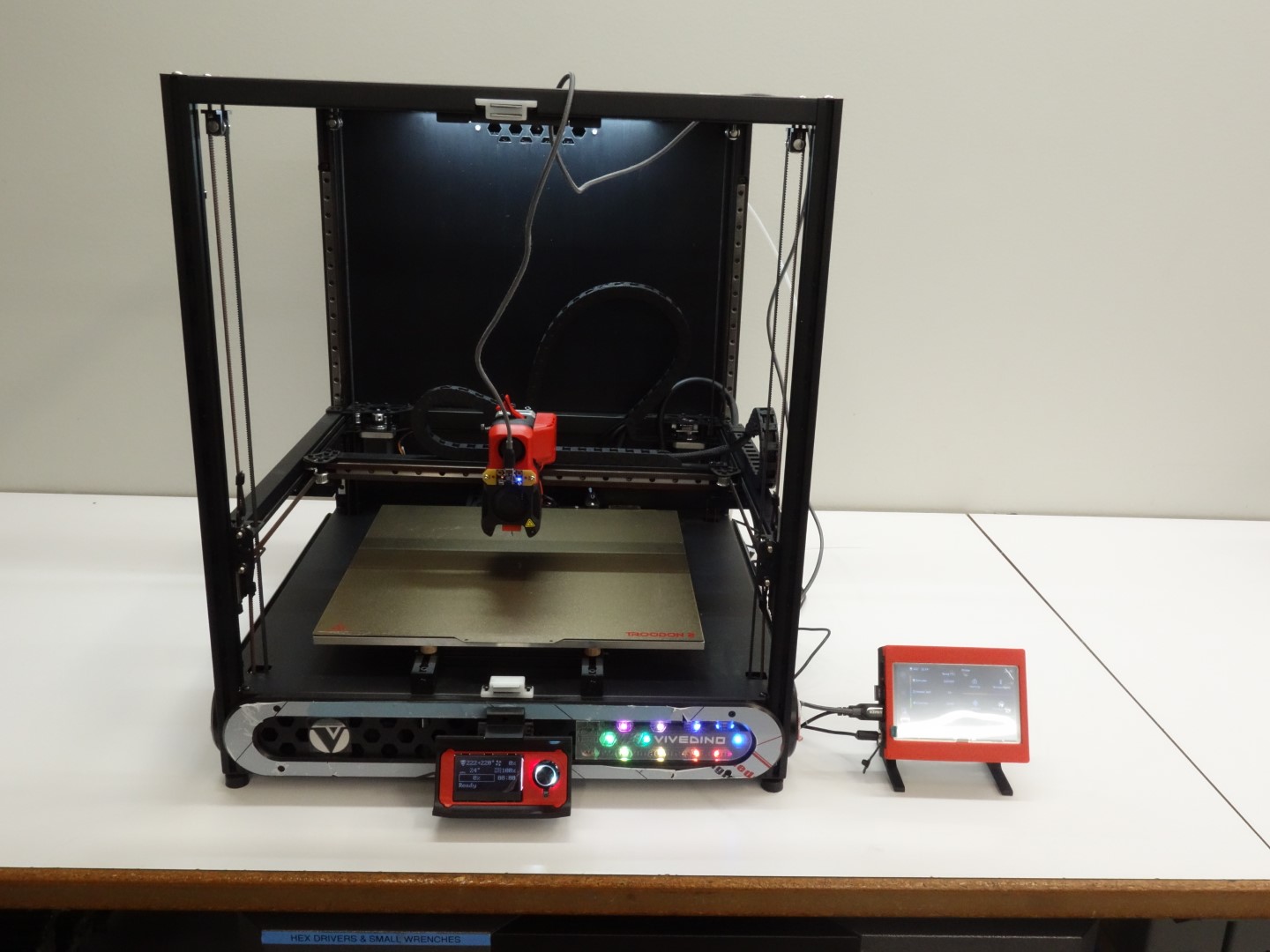

Getting Connected (Wi-Fi/Ethernet)

Ethernet

The Ethernet jack is located directly on the Klipper device. You can connect directly to your router or switch and the IP address will show next to IPv4 / eth0 at top of network screen. Enter this IP into an internet browser on a device connected to the same network to pull up Mainsail. You may need to restart KlipperScreen - System>Restart KlipperScreen.

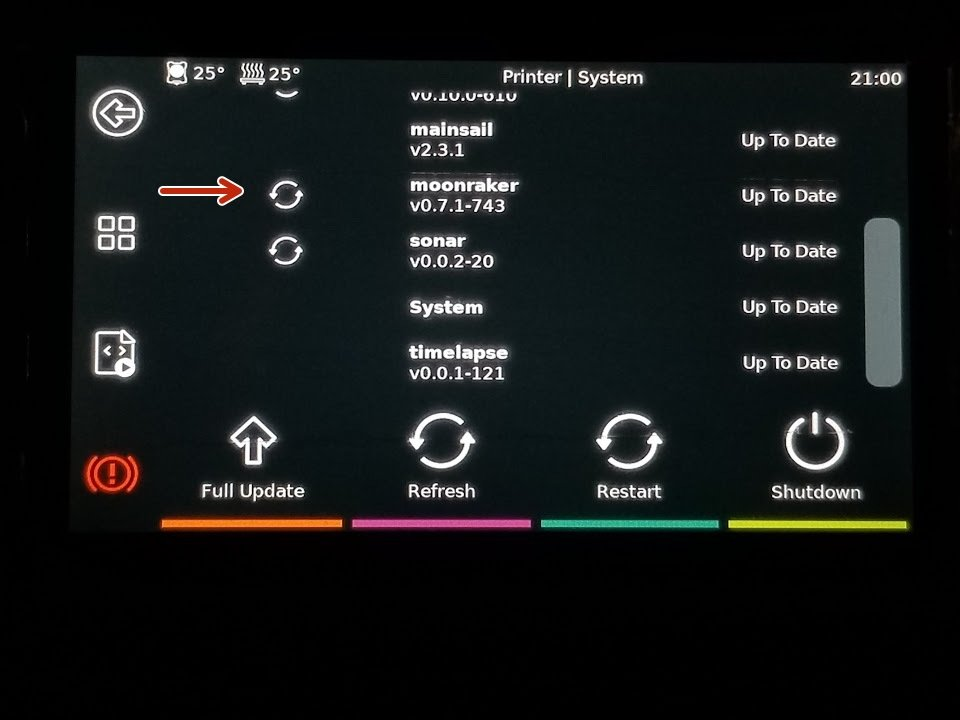

-->Configuration	-->Configuration/network	Your IP should be visible.	Restart Moonraker

Wi-Fi

Configure from the Network tab in Klipper Screen. After entering in your credentials, you will need to restart Moonraker. If your network is not visible or you have any other issues, contact us for assistance.

-->Configuration	-->Configuration/network	Choose your network and enter in your password.	Restart Moonraker

Setting Z Offset

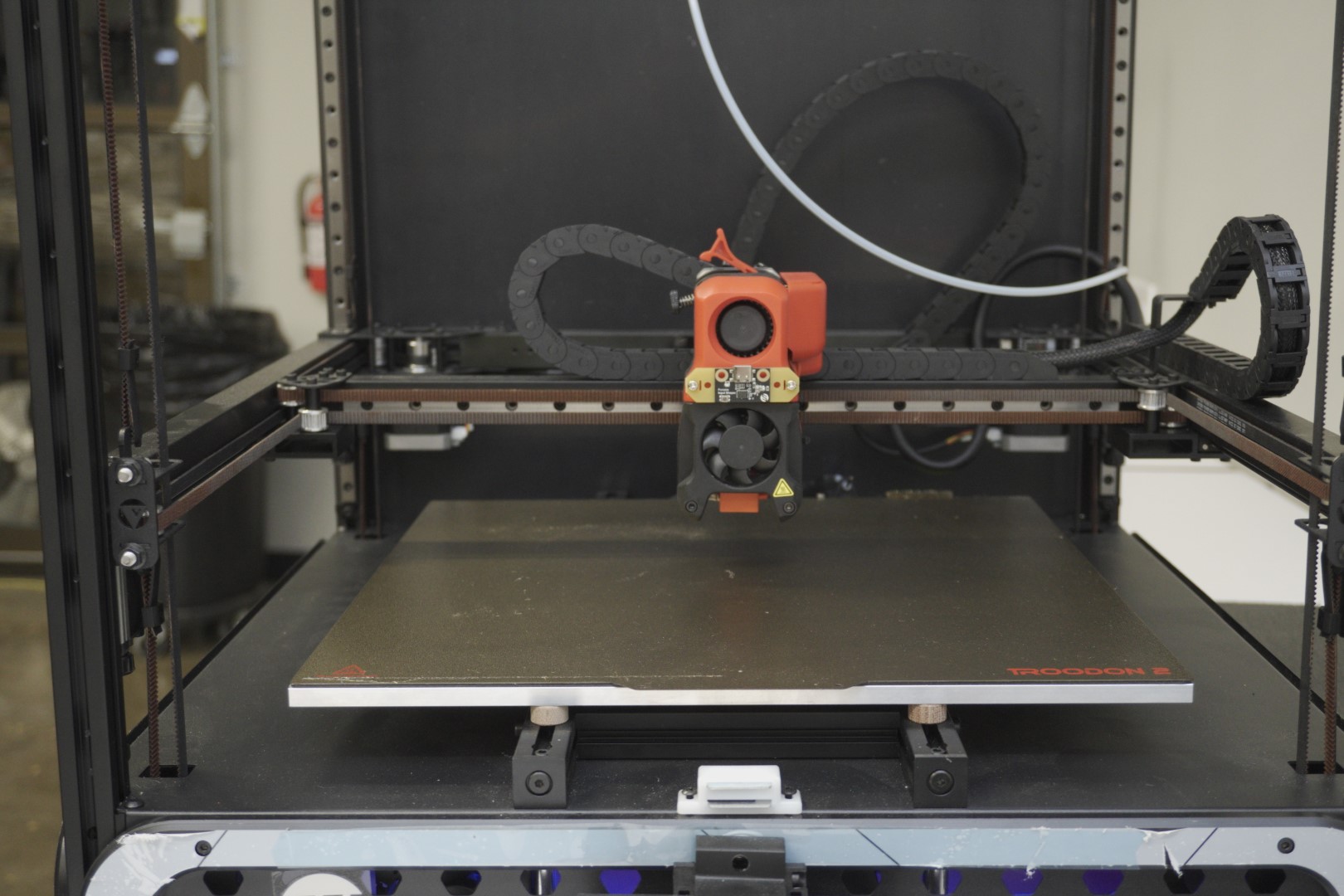

Z Offset is the value that positions the nozzle at the correct distance away from the bed surface. Then this sets the nozzle at the correct distance to avoid damaging the bed surface. The final offset will set during the first print to get the final squish on the filament to have proper bed adhesion.

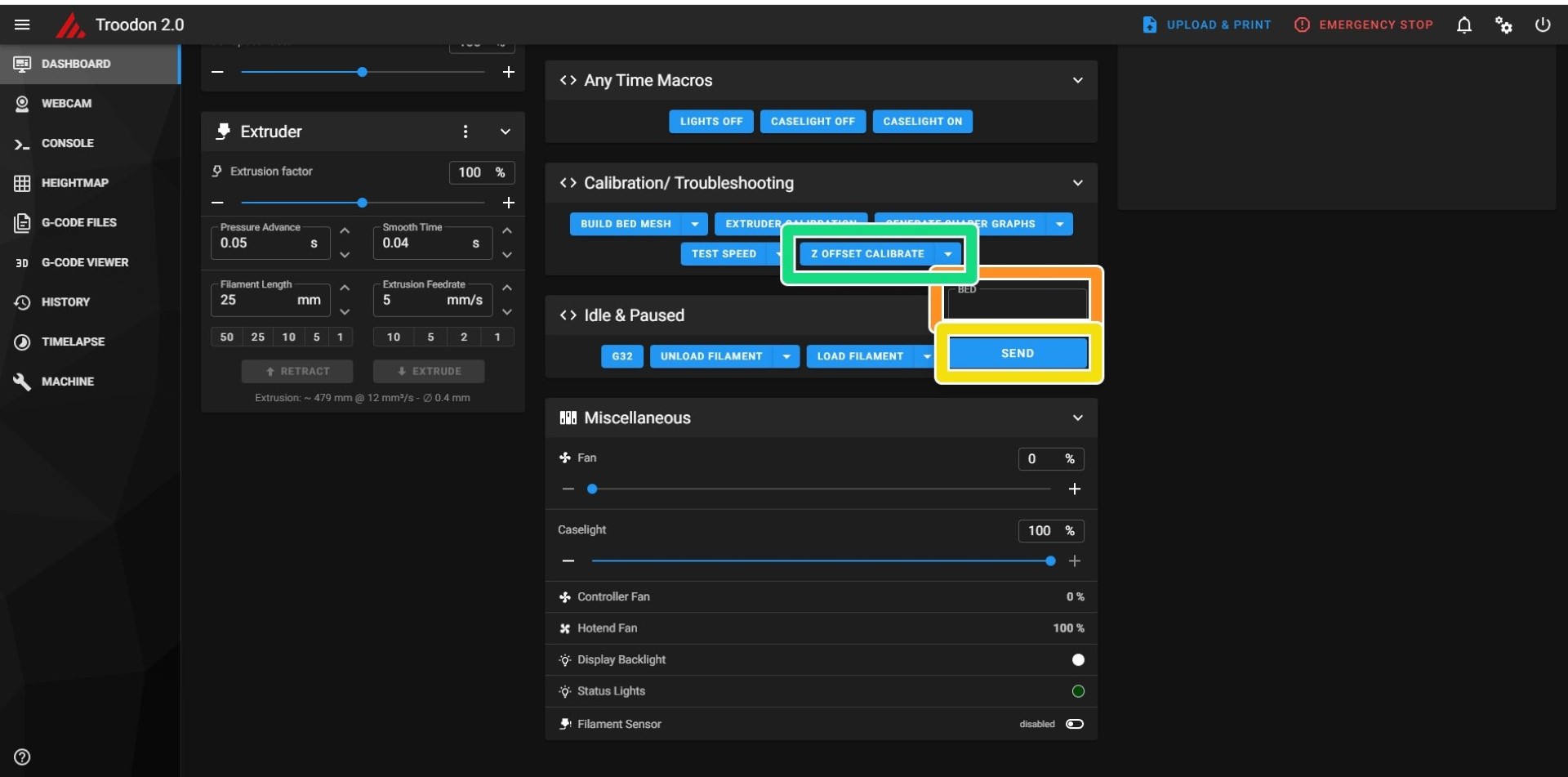

From the Mainsail browser UI, start the z calibrate process

• Choose Z OFFSET CALIBRATE from the macros menu
• Enter the bed and nozzle temperature for the material being printed (60C for PLA for example)
• Click on SEND to start the process

From the KlipperScreen start the Z endstop offset calibration

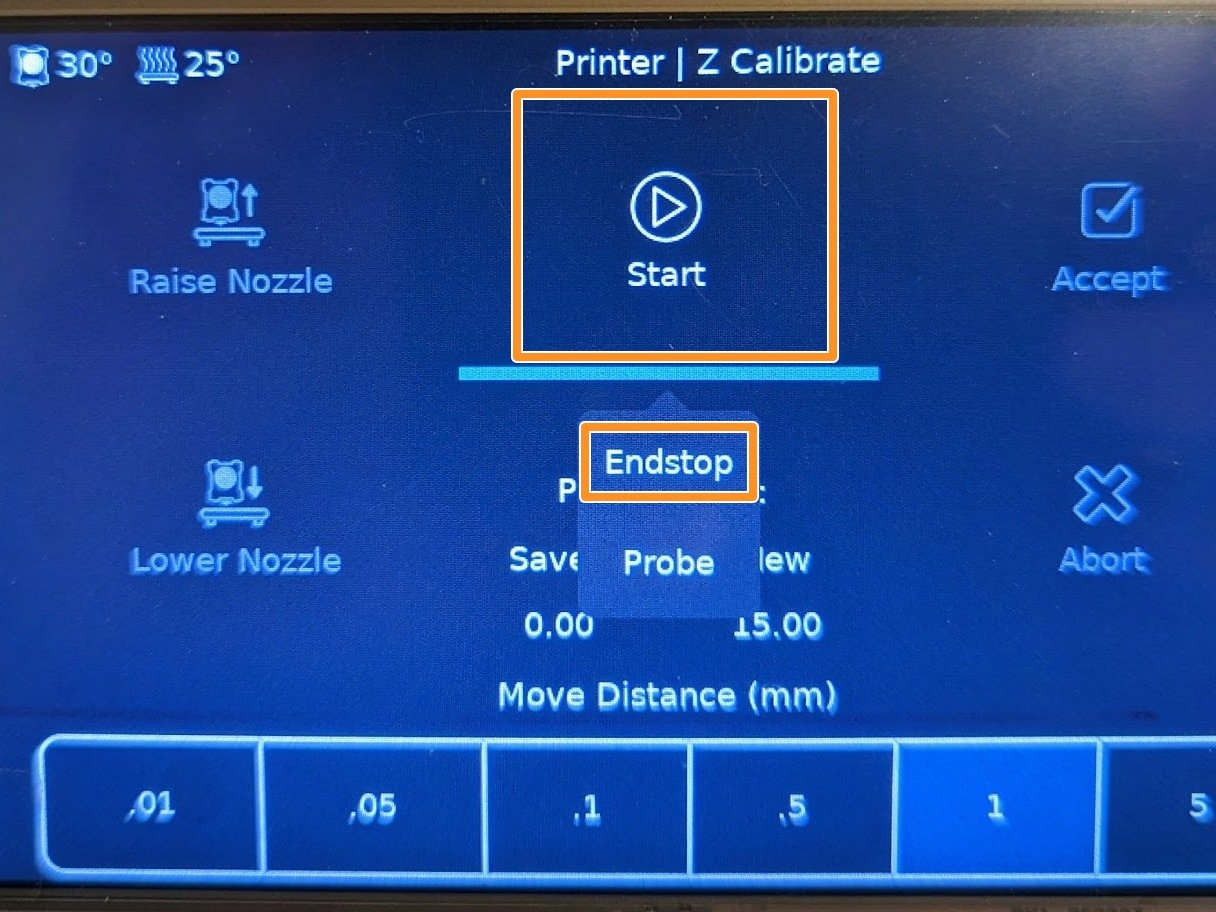

back, back /Configuration	/Configuration/Z Calibrate	Press Start, choose Endstop
Use the Raise/Lower icons to move the nozzle until you have drag on a piece of standard copy paper.	As you get closer, use smaller increments to dial in the distance.	Press accept

(Click to Enlarge)

Resources

https://klipperscreen.readthedocs.io/en/latest/Zcalibrate/

Bed Mesh Calibration

A height map must be created for each bed temperature sent from the slicer.  Bed temperature settings are located inside the filament profiles in OrcaSlicer

For example: ABS/ASA(110C), PETG(80C), PLA (60C), TPU (35C)

Our Build Bed Mesh macro makes this easy.

To start, select the dropdown and enter the target bed temperature (orange)	Press Send (green) and wait. The process is fully automated and will auto-save once complete, restarting the firmware.	You should now see heightmap profiles saved/ displayed with each bed temperature as the name.

Do not change the name of any heightmap profiles. Repeat the process for each respective material's bed temperature.

(PICTURES MISSING)

Insert filament into the tubing as shown above and push all the way down to the print head until it stops.

From the screen, locate and press the Load button.

-->Actions	-->Actions/ Extrude	-->/Actions/Extrude/Load or Unload

(Click to Enlarge)

Input shaper -- Running A Shaper Tune

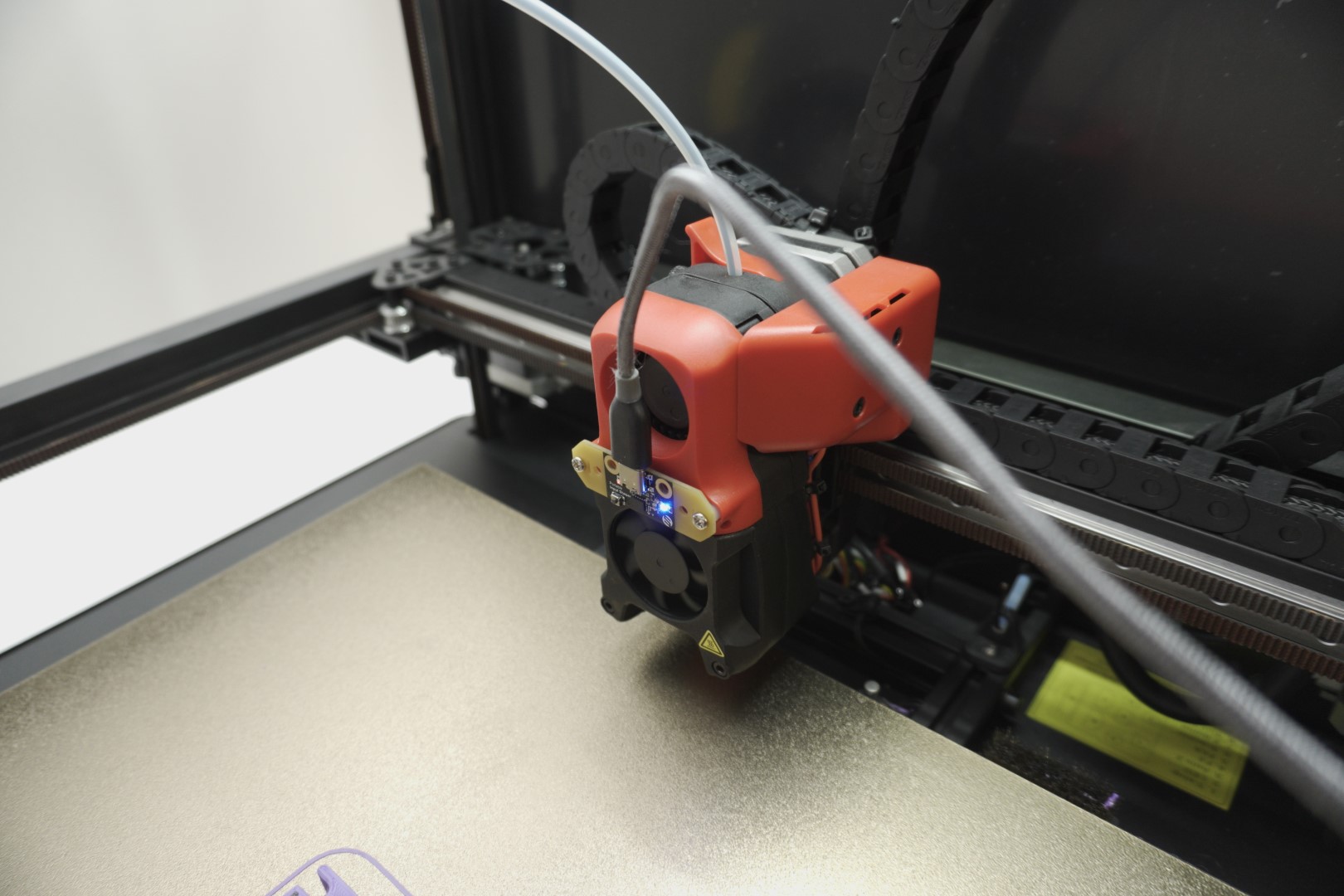

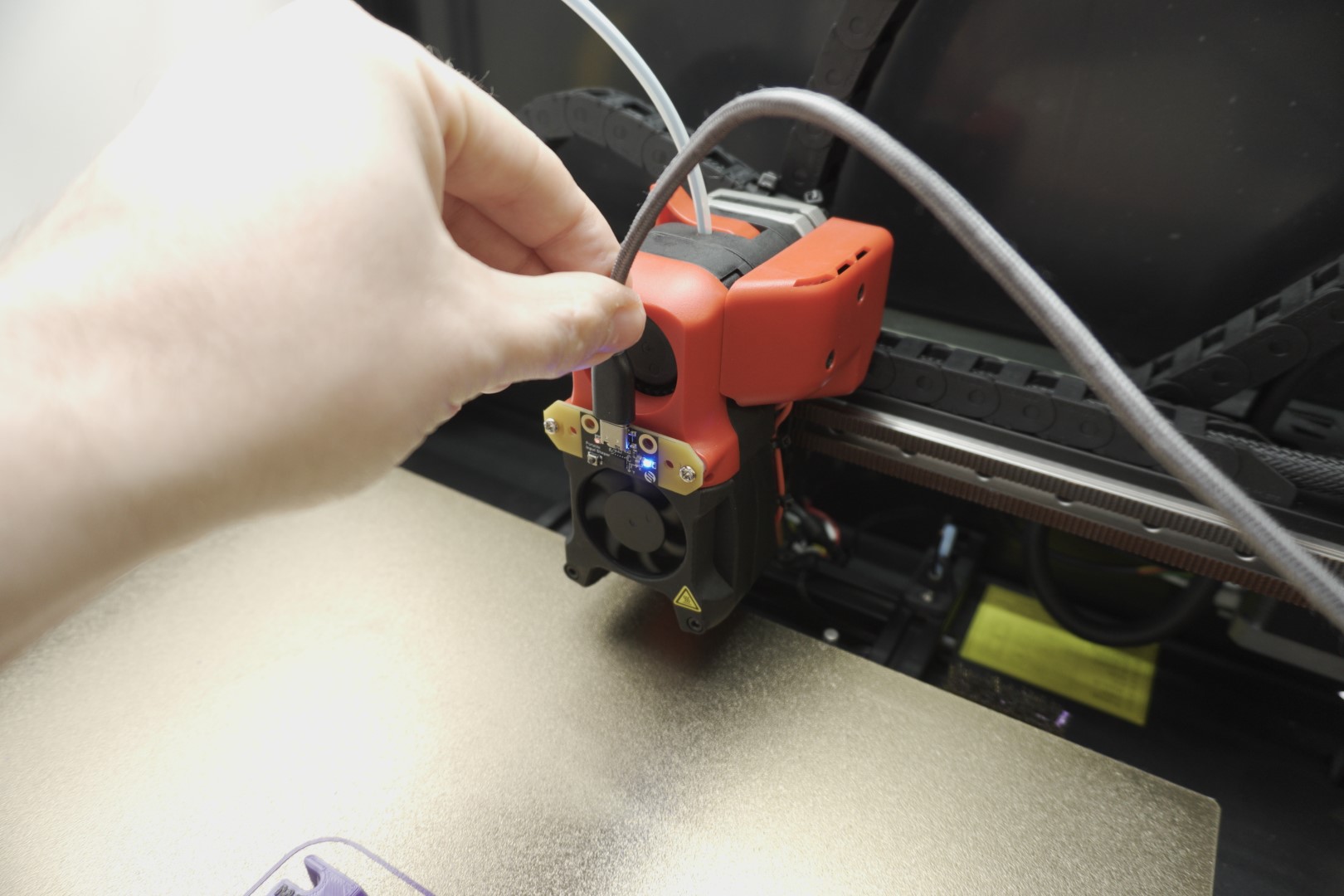

Clear the print bed of any prints	plug the USB cable from the klipper box into the PIS	make sure the cable is clear for the print head to home	Route the USB cable over the door and plug into the klipper box

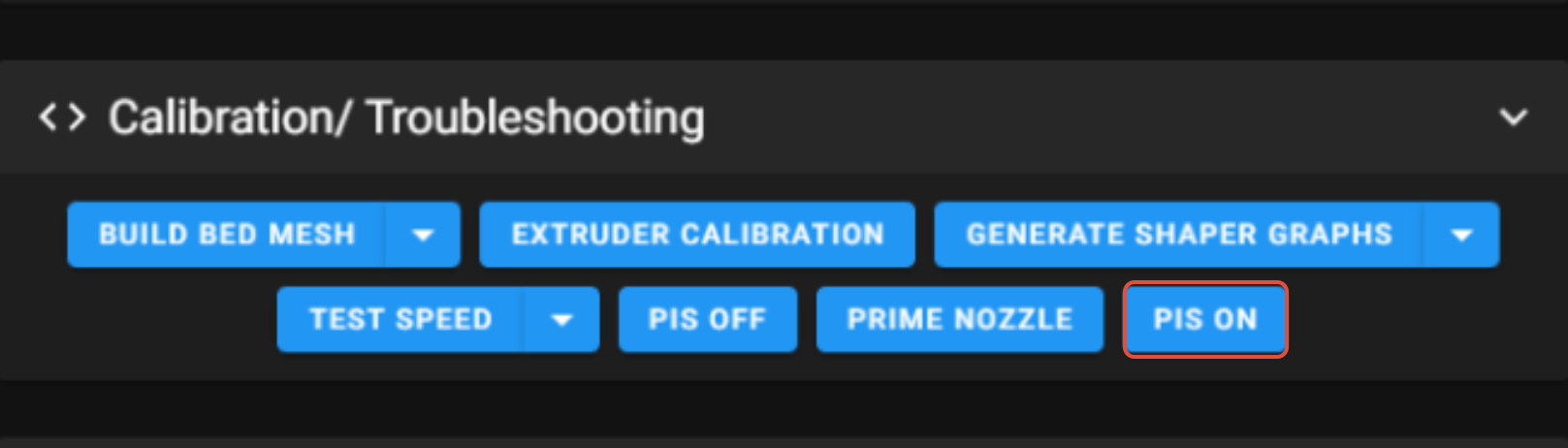

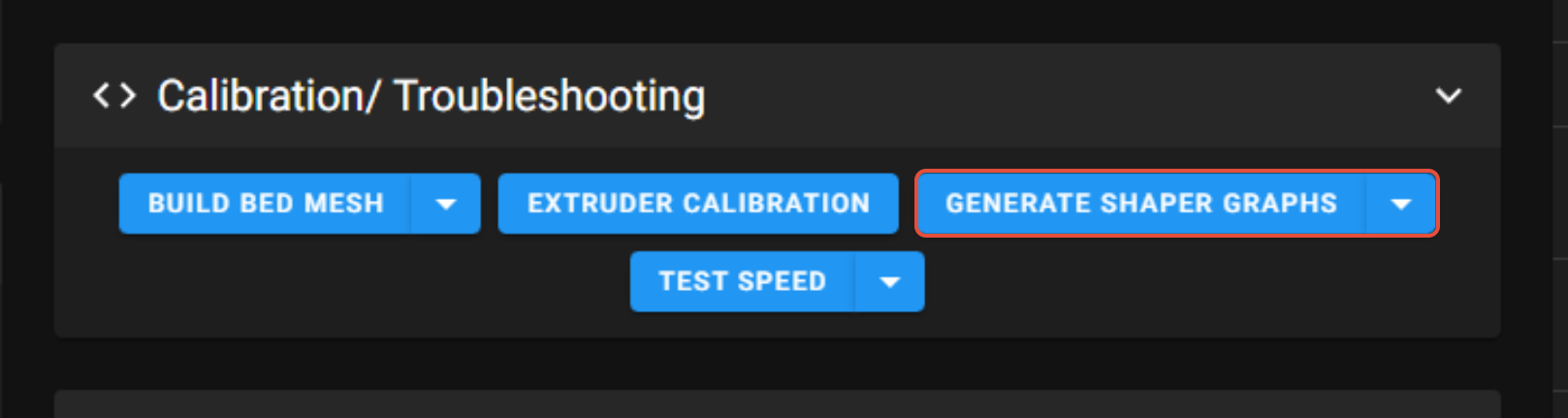

Click PIS_ON from the macro	click the Generate Shaper Graphs macro to run input shaping. Note ~the drop-down allows running X and Y axis independently. To run X then Y click the GENERATE SHAPER GRAPHS and wait until completion.

Starting Your First Print

By now, you should have Z Offset/ Bed Mesh values stored and filament loaded. We suggest starting with test prints from the SD card for the nozzle you have installed and PLA (sample roll). Files are also located on our github page for easier access. You do not need to preheat the system before starting a print, but it does not cause any issues. The process below outlines starting with the system at room temperature.

Press Print	Select your .gcode file	Confirm by pressing print again	The printer will home and start preheating
Go into Fine-Tuning	Z Offset	Clicking on these items also brings up additional menus	Example, when pressing the extruder readout on the printing screen.

SSH

For experience users only! You should not need to connect to the machine outside the screen/ browser, but in case you are familiar..

user - pi

password - tm3d

For BigTreeTech Pad 7 users

user - biqu

password - biqu

Useful SSH commands

cd ~/ && ./kiauh/kiauh.sh
