TABLE OF CONTENTS

Reference Data

PrinterRail length (mm)
Ender 3310
300 Size 390
CR10S 400490
CR10 Max550
CR10 S500590


SHCS

FHCS

BHCS


Custom MGN12 HE Adaptor plates available (CR10S-MGN12, 10SPRO-MGN12, 10V2/V3-MGN12):

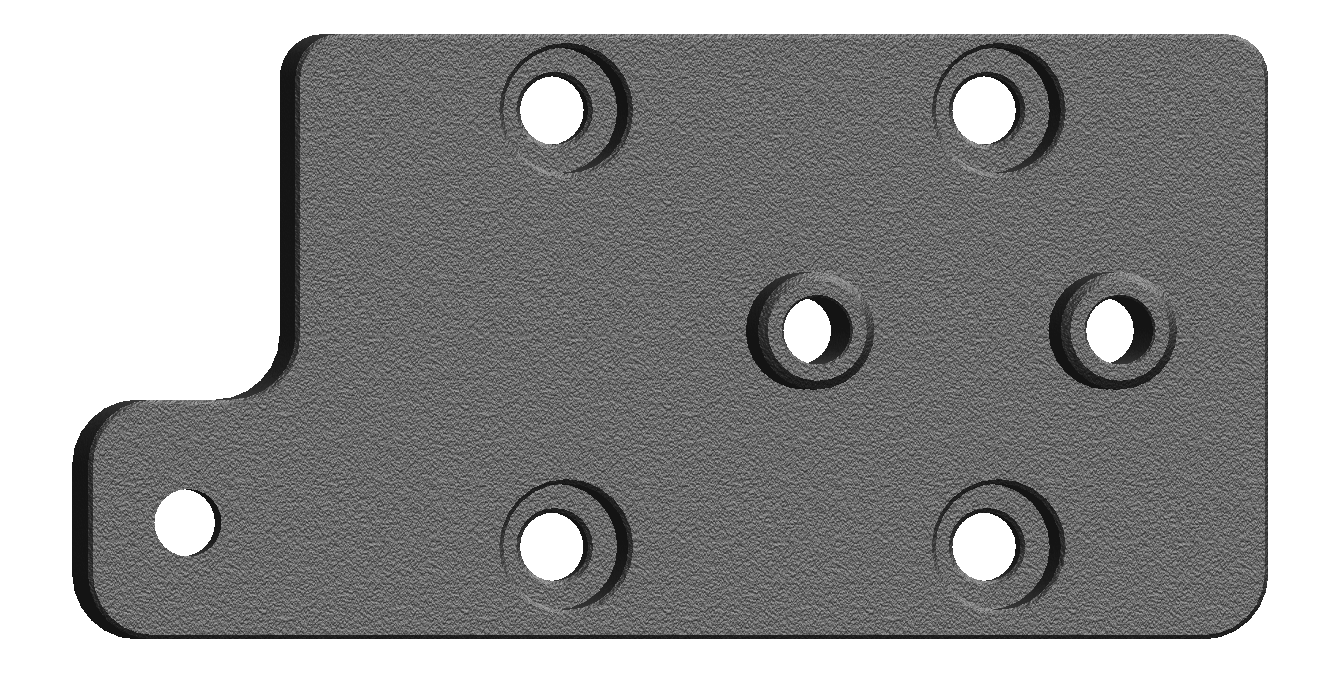

CR10S-MGN12/DDX

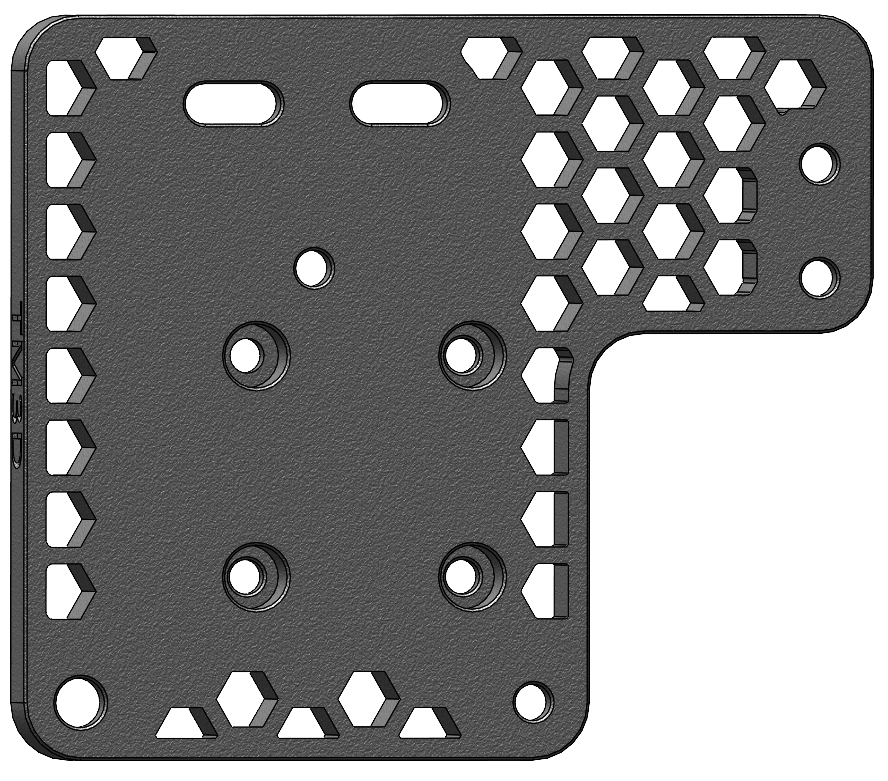

10SPRO-MGN12

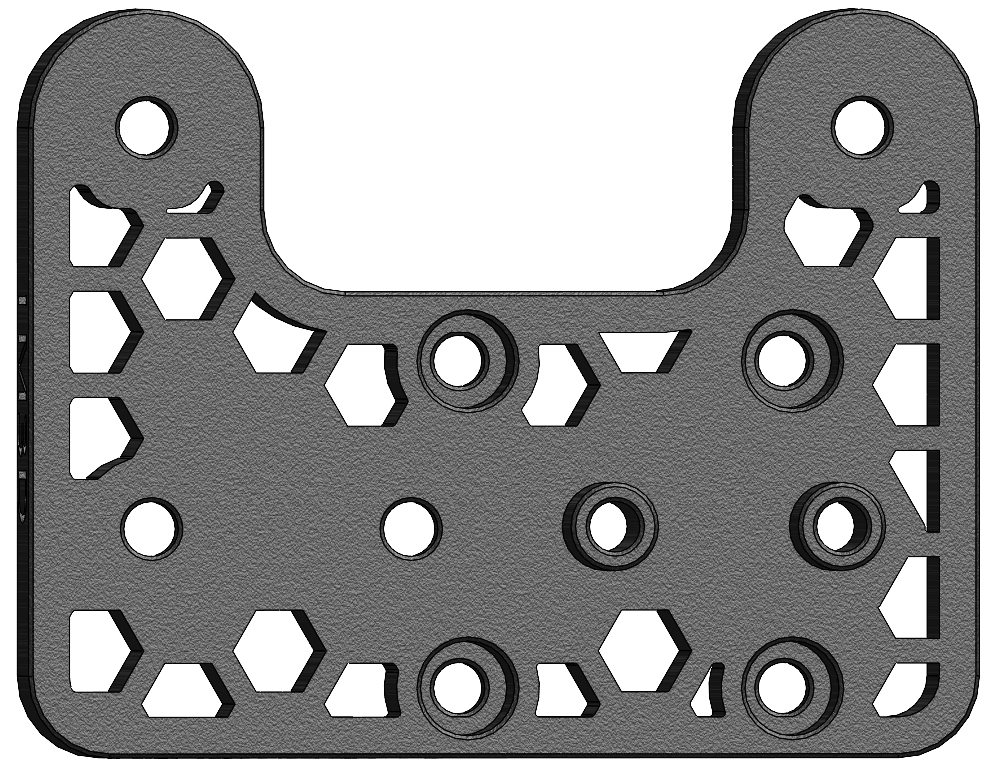

10V2/V3-MGN12


Hotend and Rail Mounting Instructions


CR-10, CR-10S, Ender 3/ 3 Pro

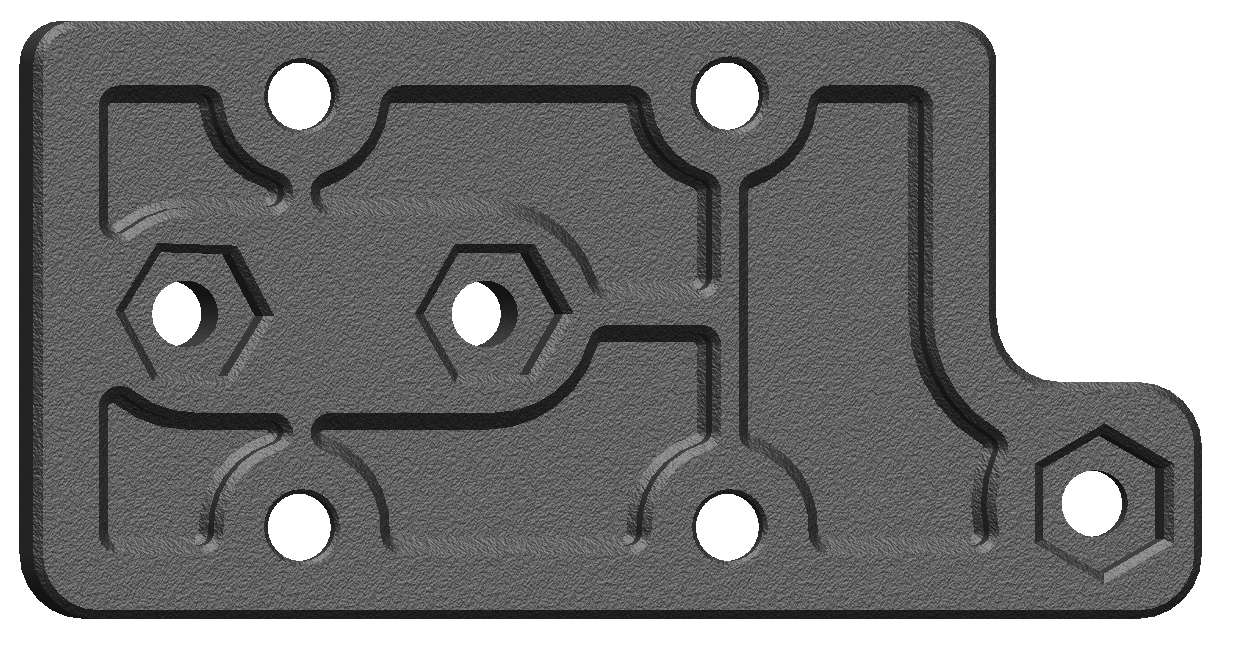

  • Press in all 3 M3 HEX NUTS from the back of the adaptor before install on linear rail block on step 5

DDX Hardware Skip Step 6

  • 2x Mounting hardware M3X30mm screw
  • 2x M3 hex Nut
  • 4x M3 Split Lock Washers

CR-10S PR0 V1/V2 & CR-10 Max

  • Press in all 4 M3 HEX NUTS from the back of the adaptor before install on linear rail block on step 5


CR-10 V2, CR-10 V3

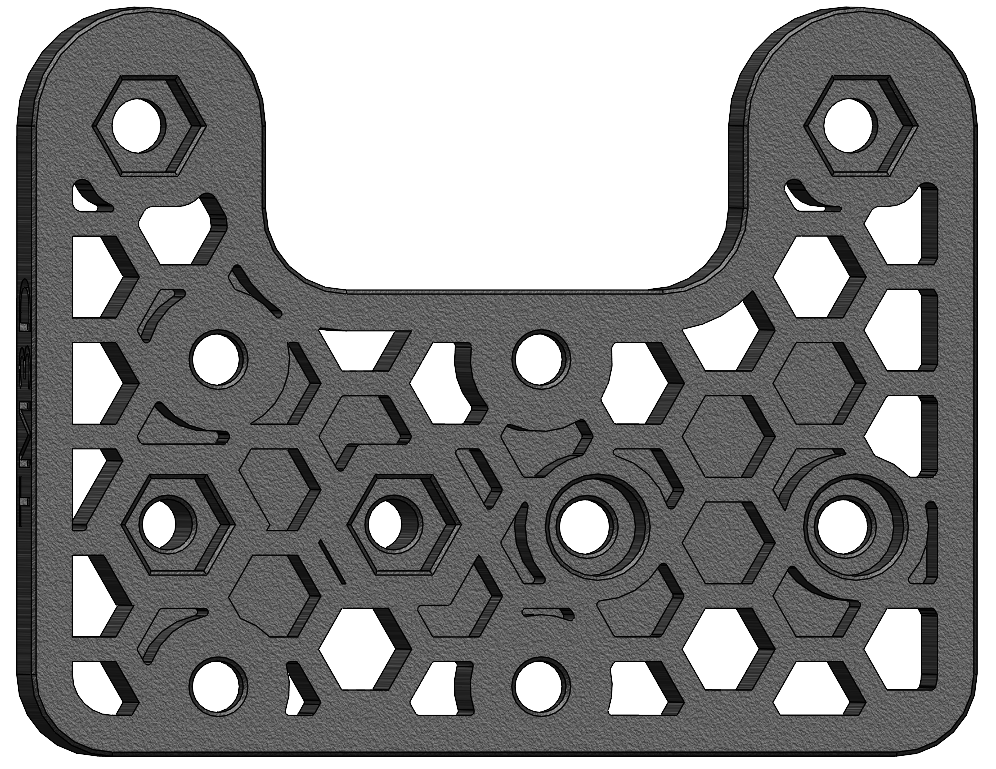

  • Press in the 2 M3 HEX NUTS from the back of the adaptor before install on linear rail block on step 5


Other Combinations

Follow Standard installation instruction include with the After completing CR10S-MGN12 Guide till step 4:

  • Linear rail MicroSwiss NG
  • Hermit Crab
